F100 Front Beam Lowering Jig Kit (1967–1979 Ford F100)

This is a tool to modify beams, this is NOT finished beams

Lower your classic Ford with confidence and precision.

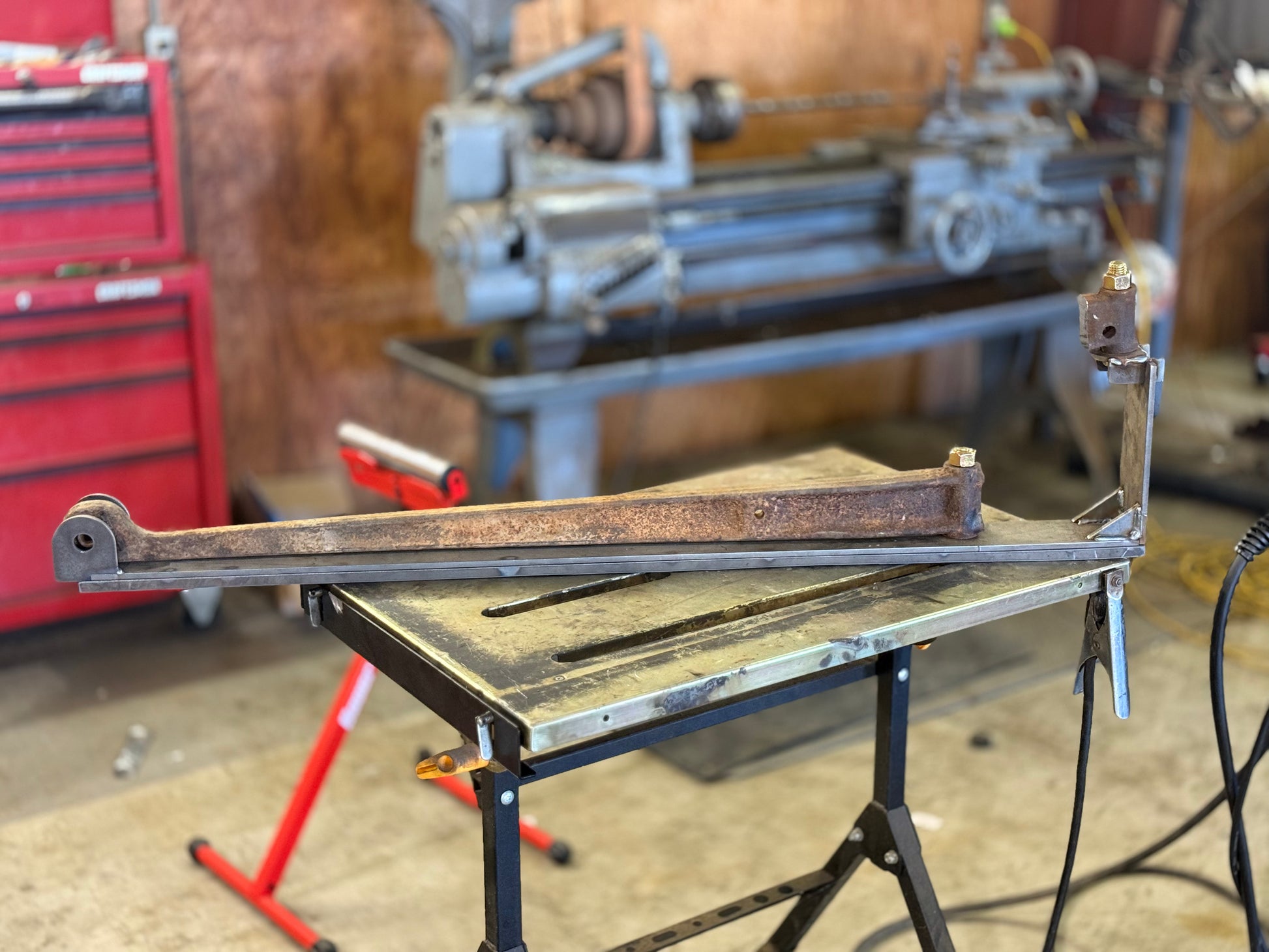

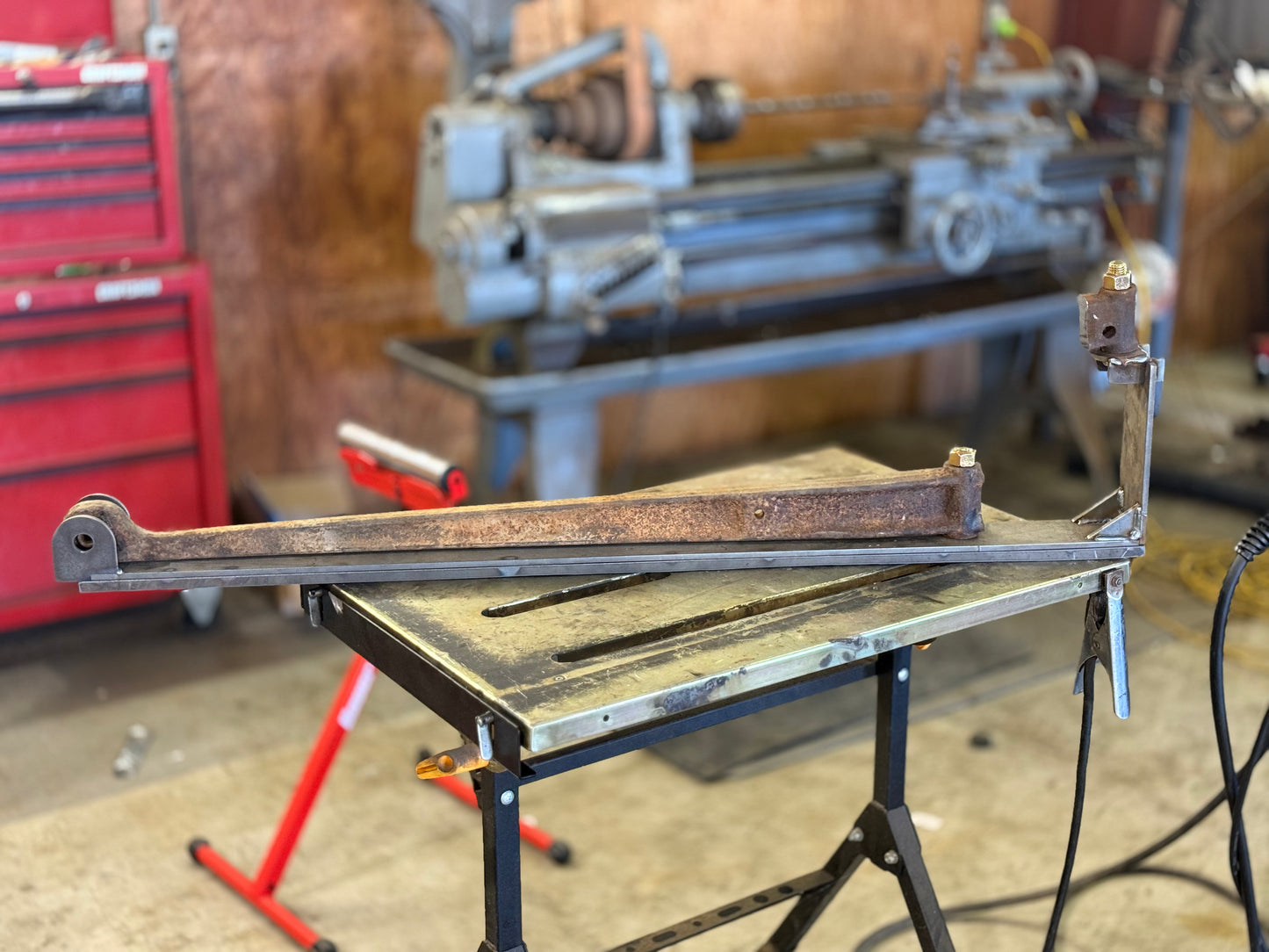

The Edison Metals Front Beam Lowering Jig is a CNC plasma-cut alignment fixture designed specifically for 1967–1979 Ford F100 trucks with king pin twin I-beam front suspension. This tool allows fabricators to accurately realign and weld the beams after they’ve been cut and sectioned for a 4.25–5.25 inch drop, ensuring that factory caster and camber geometry are retained.

Key Features

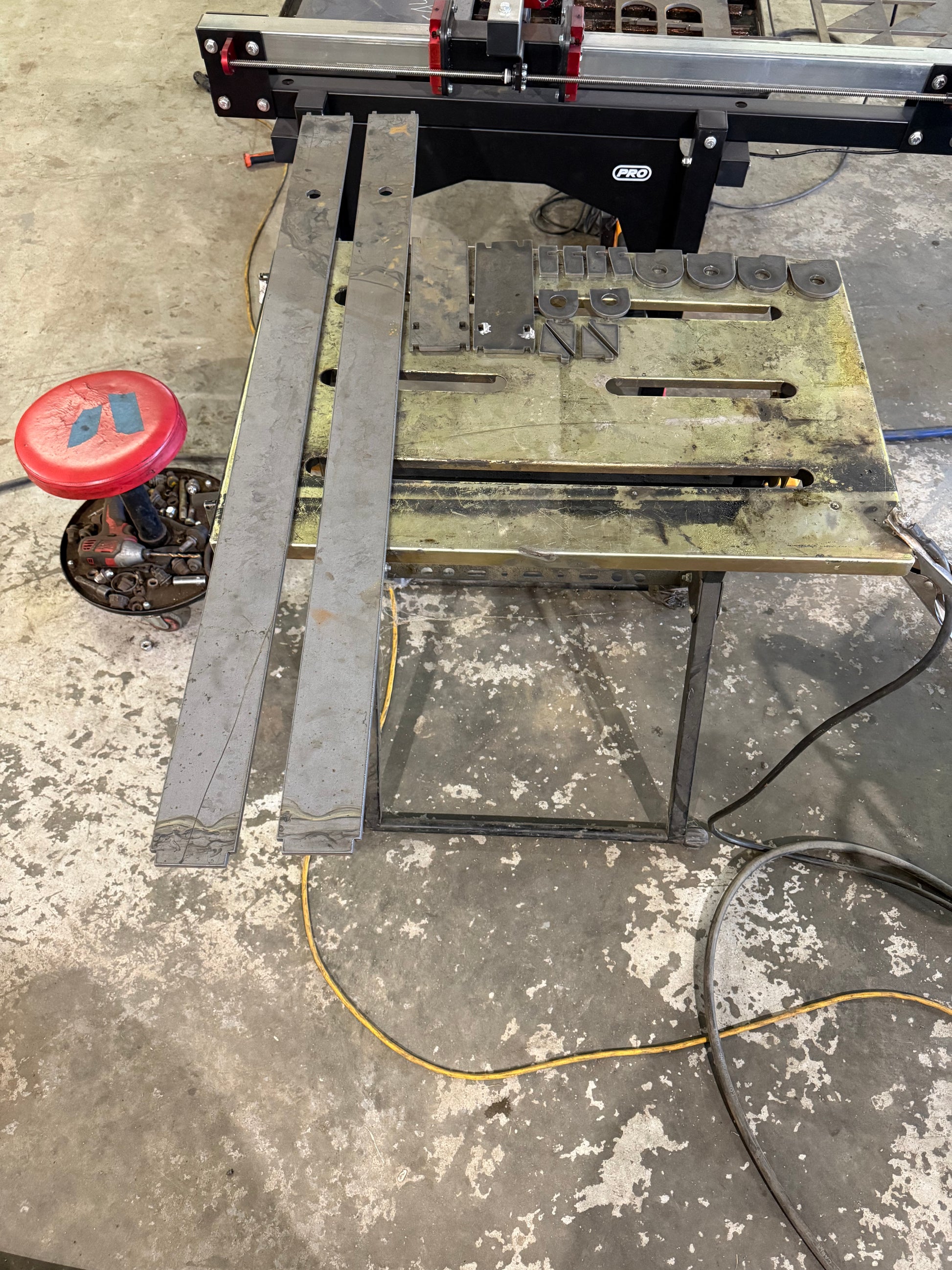

• CNC Plasma-Cut Accuracy: Precisely cut on a CNC plasma table for consistent alignment and repeatable results.
• Heavy-Duty Construction: Built from ¼-inch plate steel and 11-gauge tubing for maximum rigidity and long-term durability.
• Maintains Factory Geometry: Keeps both beams perfectly positioned during the welding process so you can achieve the drop without losing OEM alignment angles.
• Professional, Repeatable Results: Eliminates guesswork when lowering twin I-beams — every set comes out straight and true.
• Made in the USA: Proudly designed and manufactured by Edison Metals LLC.

A Tool for Fabricators and Entrepreneurs

This jig isn’t just for one project — it’s designed for repeatable production work. Whether you’re a hobbyist building your own lowered truck or a fabricator looking to offer drop beam conversions as a service, this tool provides the accuracy and efficiency needed to turn your skills into a business. With it, you can confidently produce correctly aligned drop beams for the classic F100 market.

Compatibility

• Fits: 1967–1979 Ford F100 2WD king pin front suspension
• Not compatible with later ball-joint style beams

Notes

• The jig does not indicate where to cut or weld — it holds the beams in correct alignment after cutting.
• Welding and fabrication experience required.
• Reference points and setup details included.

By purchasing and using this product, you accept that Edison Metals LLC and it's partners are NOT liable for any claims arising from modifications made with this tool nor any damage/injury that may occur during it's use. It is the customers responsibility to ensure the quality of the work performed with this tool.
